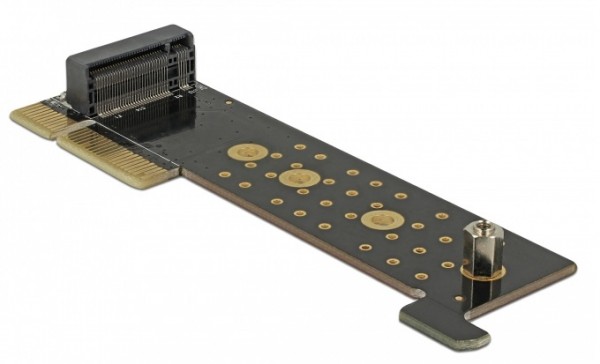

M.2 KEY M - PCIe x4 Adapter Board for NVMe SSDs

This PCI Express card expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected. If the card will be installed in the PC, the slot bracket does not have to be removed. Due to the small height, the card can also fit into for servers with one unit height (1U).

Specification

• Connectors:
  1 x 67 pin M.2 key M slot
  1 x PCI Express x4
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
  key B+M based on PCIe
• Bootable
• Supports NVM Express (NVMe)

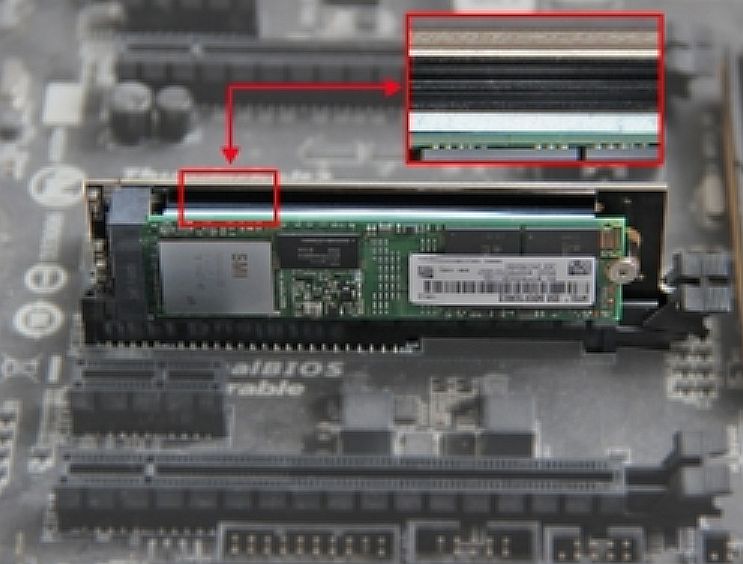

• Holder for lock on PCI Express x16 slots
• Dimensions (LxWxH) without PCIe connector and lock holder: ca. 94 x 22 x 12 mm
