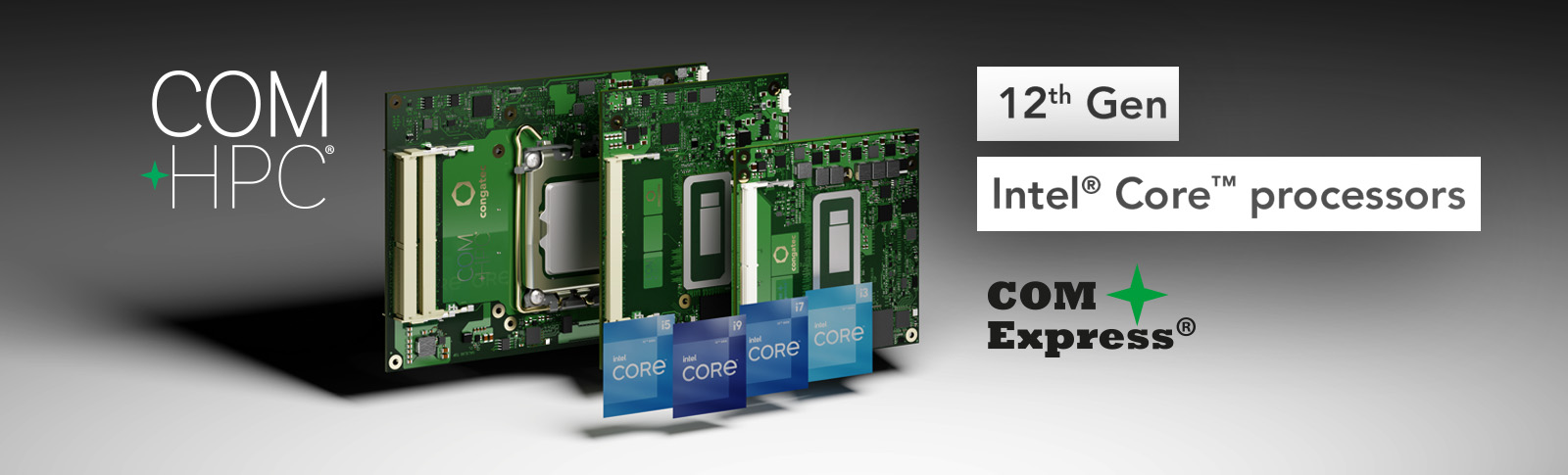

conga-TC670 - COM Express Type 6 Compact module based on 12th Gen Intel Core Mobile "Alder Lake" CPUs

COM Express Type 6 Compact module from congatec based on 12th Gen Intel® Core™ embedded mobile processors (code name "Alder Lake")

  • Intel® hybrid design combines Performance-cores with Efficient–cores
  • Up to Intel® Iris® XeGraphics® architecture with up to 96 EUs
  • PCI Express Gen 4 | USB 3.2
  • AI Acceleration with Intel® Deep Learning Boost (VNNI)
  • Embedded Use Condition SKUs
COM Express Type 6 Compact module from congatec based on 12th Gen Intel® Core™ embedded mobile processors (code name "Alder Lake") Intel® hybrid design combines Performance-cores with... read more »
Close window
conga-TC670 - COM Express Type 6 Compact module based on 12th Gen Intel Core Mobile "Alder Lake" CPUs

COM Express Type 6 Compact module from congatec based on 12th Gen Intel® Core™ embedded mobile processors (code name "Alder Lake")

  • Intel® hybrid design combines Performance-cores with Efficient–cores
  • Up to Intel® Iris® XeGraphics® architecture with up to 96 EUs
  • PCI Express Gen 4 | USB 3.2
  • AI Acceleration with Intel® Deep Learning Boost (VNNI)
  • Embedded Use Condition SKUs
Close filters
  •
  •
No results were found for the filter!
COM EXPRESS OEM Carrier Board Design Service COM EXPRESS OEM Carrier Board Design Service
On request, we can offer you the development and production of your application-specific COM Express Carrier Board and other services in the area of system integration. Here we fall back on experience and function blocks from designs that have already been implemented. The close interaction between development and production enables us to implement customer-specific systems...
conga-TC670/i5-12600HE conga-TC670/i5-12600HE
COM Express Type 6 Compact module from congatec based on Intel® Core™ i5-12600HE processor with 4 P-cores 2.5GHz up to 4.5GHz and 8 E-cores 1.8GHz up to 3.3GHz | 18MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Alder Lake-P (H-Series)
conga-TC670/i7-12800HE conga-TC670/i7-12800HE
COM Express Type 6 Compact module from congatec based on Intel® Core™ i7-12800HE processor with 6 P-cores 2.4GHz up to 4.6GHz and 8 E-cores 1.8GHz up to 3.5GHz | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Alder Lake-P (H-Series)
conga-TC670/i3-12300HE conga-TC670/i3-12300HE
COM Express Type 6 Compact module from congatec based on Intel® Core™ i3-12300HE processor with 4 P-cores 1.9GHz up to 4.3GHz and 4 E-cores 1.5GHz up to 3.3GHz | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Alder Lake-P (H-Series)
