Embedded Network Video Recorder DLAP-301-NANO based on NVIDIA® Jetson Nano™ Embedded Module. The... more
Product information "DLAP-301-NANO - NVIDIA® Jetson Nano™ basierender NVR"

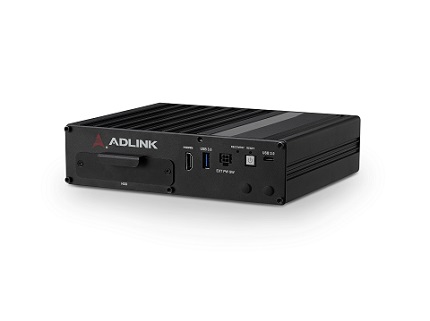

Embedded Network Video Recorder DLAP-301-NANO based on NVIDIA® Jetson Nano™ Embedded Module. The NVIDIA® Jetson Nano™ module platform delivers 472 GFLOPs for running modern AI algorithms fast. The module runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously.

Feature Overview: ADLINK DLAP-301-NANO

  • NVIDIA® Jetson Nano™ processing/inference engine
  • Quad-core ARM® Cortex®-A57 MPCore processor
  • 128 NVIDIA CUDA® cores

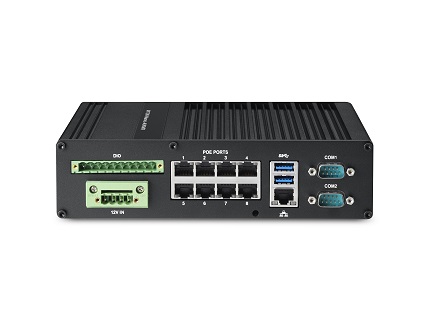

  • 8x GbE/PoE for IP GigE cameras
  • HDMI, 8-bit digital inputs/outputs, 2x RS-232, 2x USB, GbE for uplink
  • Easy to maintain 2.5” SATA storage
  • 12V DC input, optional AC/DC PSU

Key Features of the NVIDIA® Jetson Nano™

  • GPU:
    NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores, 0.5 TFLOPs (FP16)
  • CPU
    Quad-core ARM® Cortex®-A57 MPCore processor
  • Memory
    4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s
  • Storage
    16 GB eMMC 5.1 Flash
  • Video Encode
    250 MP/sec
    1x 4K @ 30 (HEVC)
    2x 1080p @ 60 (HEVC)
    4x 1080p @ 30 (HEVC)
  • Video Decode
    500 MP/sec
    1x 4K @ 60 (HEVC)
    2x 4K @ 30 (HEVC)
    4x 1080p @ 60 (HEVC)
    8x 1080p @ 30 (HEVC)
