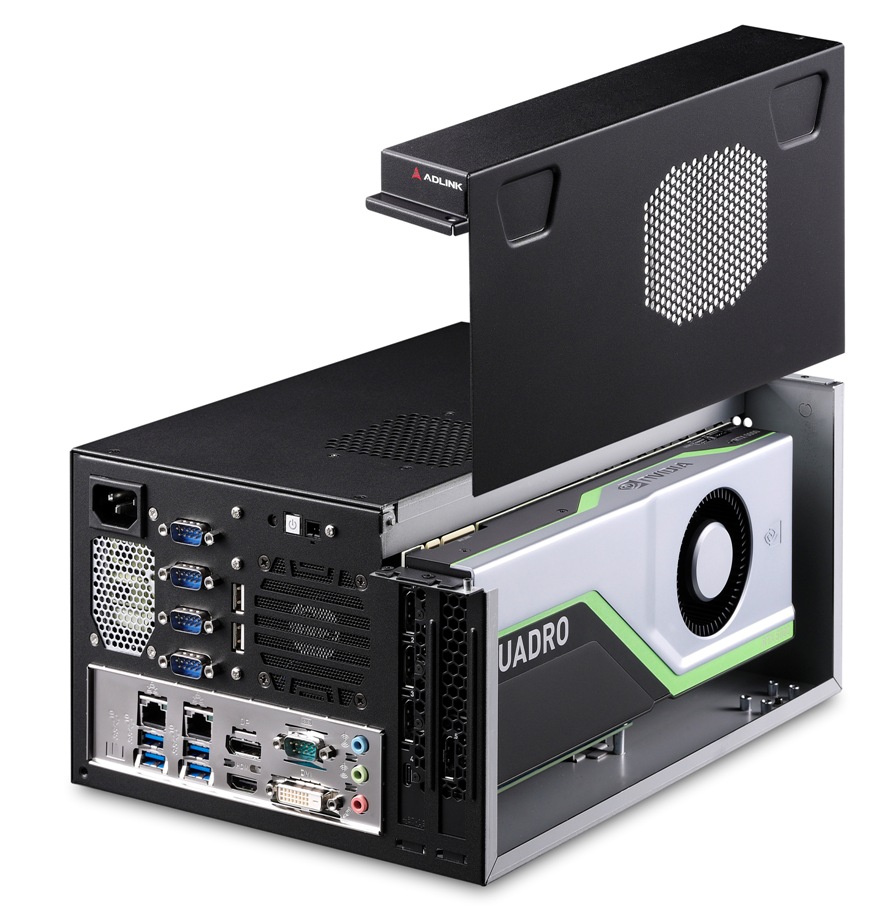

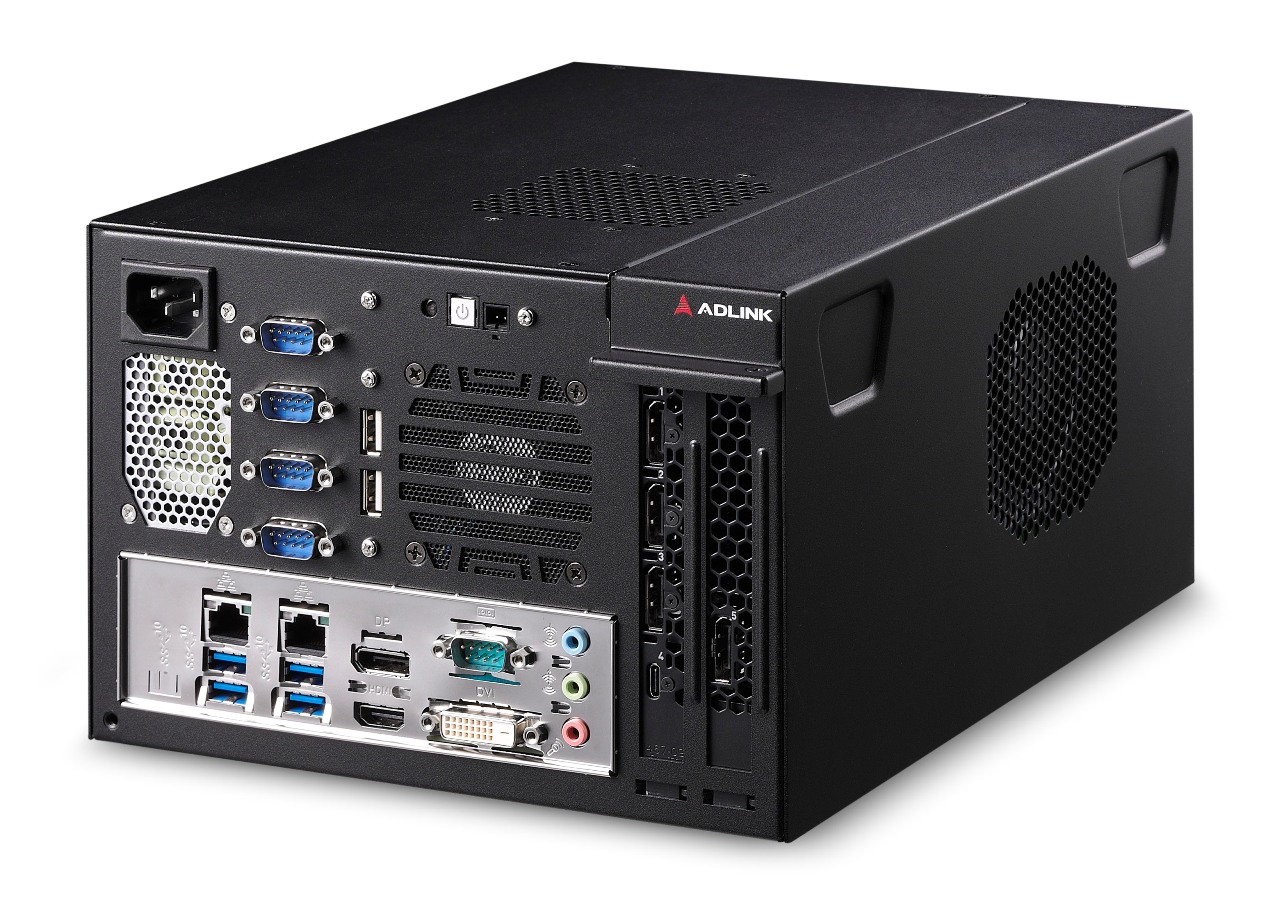

The DLAP-4000 Embedded System from ADLINK supports a FHFL dual-width PEG slot in Combination with 8th/9th Generation Intel® Core™ i7/i5/i3 CPUs in LGA1151 Socket.
DLAP-4000 Key Features
- NVIDIA® Quadro® PEG card support
- 8th/9th Gen Intel® Core™ i7/i5/i3 processor
- Dual SODIMMs for up to 32GB DDR4 non-ECC memory (dependent on CPU)
- 1x DVI, 1x HDMI, 1x DP (from CPU), additional display outputs from PEG cards
- 1x Mini PCIe slot for Wi-Fi/Bluetooth or LTE module
- 1x M.2 M key supporting 2280 SATA SSD module
- 300W/400W/500W Flex ATX PSU
DLAP-4000 Product Variants
- DLAP-4001/M8G/[PEG] - Intel® Core™ i7-9700E, 8GB non-ECC DDR4
- DLAP-4002/M8G/[PEG] - Intel® Core™ i5-9500E, 8GB non-ECC DDR4
- DLAP-4003/M8G/[PEG] - Intel® Core™ i3-9100E, 8GB non-ECC DDR4
- DLAP-4004/M8G/[PEG] - Intel® Core™ i7-9700TE, 8GB non-ECC DDR4
- DLAP-4005/M8G/[PEG] - Intel® Core™ i5-9500TE, 8GB non-ECC DDR4
- DLAP-4006/M8G/[PEG] - Intel® Core™ i3-9100TE, 8GB non-ECC DDR4
- DLAP-4007/M8G/[PEG] - Intel® Core™ i7-8700, 8GB non-ECC DDR4
- DLAP-4008/M8G/[PEG] - Intel® Core™ i5-8500, 8GB non-ECC DDR4
- DLAP-4009/M8G/[PEG] - Intel® Core™ i3-8100, 8GB non-ECC DDR4
- DLAP-400A/M8G/[PEG] - Intel® Core™ i7-8700T, 8GB non-ECC DDR4
- DLAP-400B/M8G/[PEG] - Intel® Core™ i5-8500T, 8GB non-ECC DDR4
- DLAP-400C/M8G/[PEG] - Intel® Core™ i3-8100T, 8GB non-ECC DDR4
Recommend List of NVIDIA QUADRO Video / Acceleration Cards
- NVIDIA® Quadro® P2200 - 75W, 1280 CUDA Cores, GDDR5 5GB
- NVIDIA® Quadro® P4000 - 105W, 1792 CUDA Cores, GDDR5 8GB
- NVIDIA® Quadro® P5000 - 180W, 2560 CUDA Cores, GDDR5 16GB
- NVIDIA® Quadro® RTX 4000 - 160W, 2304 CUDA Cores, GDDR6 8GB
- NVIDIA® Quadro® RTX 5000 - 265W, 3072 CUDA Cores, GDDR6 16GB
- NVIDIA® Quadro® RTX 6000 - 295W, 4608 CUDA Cores, GDDR6 24GB
- NVIDIA® Quadro® RTX 8000 - 295W, 4608 CUDA Cores, GDDR6 48 GB
Supported Processors
- Intel® Core™ i7-9700E, 2.6GHz, 12M Cache, 65W TDP, LGA1151, DDR4 2666MHz support (8C/8T)
- Intel® Core™ i5-9500E, 3.0GHz, 9M Cache, 65W TDP, LGA1151, DDR4 2666MHz support (6C/6T)
- Intel® Core™ i3-9100E, 3.1GHz, 6M Cache, 65W TDP, LGA1151, DDR4 2666MHz support (4C/4T)
- Intel® Core™ i7-9700TE, 1.8GHz, 12M Cache, 35W TDP, LGA1151, DDR4 2666MHz support (8C/8T)
- Intel® Core™ i5-9500TE, 2.2GHz, 9M Cache, 35W TDP, LGA1151, DDR4 2666MHz support (6C/6T)
- Intel® Core™ i3-9100TE, 2.2GHz, 6M Cache, 35W TDP, LGA1151, DDR4 2666MHz support (4C/4T)
- Intel® Core™ i7-8700, 3.2GHz, 12M Cache, 65W TDP, LGA1151, DDR4 2666MHz support (6C/12T)
- Intel® Core™ i5-8500, 3.0GHz, 9M Cache, 65W TDP, LGA1151, DDR4 2666MHz support (6C/6T)
- Intel® Core™ i3-8100, 3.6GHz, 6M Cache, 65W TDP, LGA1151, DDR4 2400MHz support (4C/4T)
- Intel® Core™ i7-8700T, 2.4GHz 12M Cache, 35W TDP, LGA1151, DDR4 2666MHz support (6C/12T)
- Intel® Core™ i5-8500T, 2.1GHz, 9M Cache, 35W TDP, LGA1151, DDR4 2666MHz support (6C/6T)
- Intel® Core™ i3-8100T, 3.1GHz, 6M Cache, 35W TDP, LGA1151, DDR4 2400MHz support (4C/4T)
Chipset
- Intel® H310 Chipset
- Non-ECC DDR4 2666/2400MHz, 2x SO-DIMM, up to 32GB (dependent on CPU) system memory
Video Interfaces:
- 1x DVI
- 1x HDMI
- 1x DP (from CPU)
- additional display outputs from PEG cards
Ethernet
- 2x GbE (Realtek RTL8111G)
Serial Ports
- 1x RS-232/422/485
- 4x RS-232
USB
- 4x USB 3.1 Gen1 ports
- 2x USB 2.0 ports
M.2
- 1x Mini PCIe slot for Wi-Fi/Bluetooth or LTE module
- 1x M.2 M key supporting 2280 SATA SSD modules
Audio
- Mic-in, Line-out, Line-in
TPM 2.0
- Optional
Storage
- SATA 2x 2.5" SATA 6Gb/s internal drive bays
- 1x SATA 6Gb/s signal via M.2 M key slot
Dimensions
- 220 x 300 x 150 mm (W x D x H)
